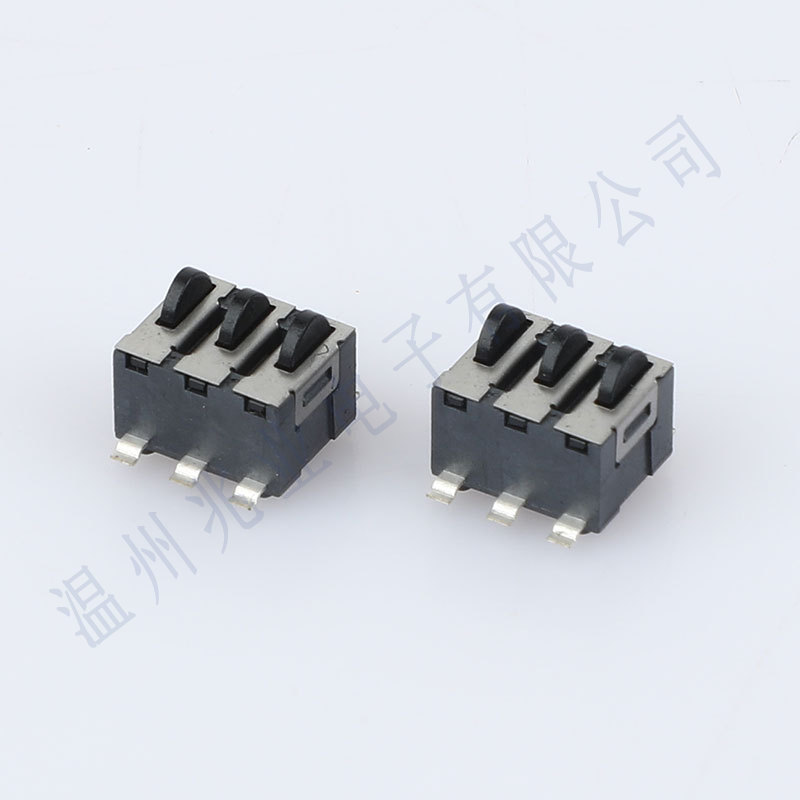

DS3AB-501-02T Detection Switch / Limit Switch – High-Precision Position Detection for Industrial Automation Systems

When I work on automation equipment, one component I never overlook is the detection switch. A reliable switch directly affects machine accuracy, operational safety, and production efficiency. The DS3AB-501-02T Detection Switch / Limit Switch is designed to deliver dependable position detection, rapid signal transmission, and long-lasting durability for modern industrial applications.

Whether installed in automated production lines, industrial robots, conveyor systems, packaging machinery, or CNC equipment, the DS3AB-501-02T provides accurate motion feedback and reliable limit control. Its compact structure and stable performance make it an excellent choice for manufacturers seeking efficient and cost-effective automation solutions.

Manufactured by Wenzhou Zhaoye Electronics Co., Ltd., a company specializing in electronic components and electronic switches since 2007, this detection switch combines precision engineering with strict quality control to meet the demands of today's intelligent manufacturing industry.

Understanding the DS3AB-501-02T Detection Switch

The DS3AB-501-02T Detection Switch is an electromechanical control device used to monitor movement, detect positions, and provide travel limit protection in machinery and automation systems.

I often explain a detection switch as a communication bridge between moving mechanical parts and electronic control systems. When a machine component reaches a designated position, it activates the switch actuator. The internal contacts then change state and send an electrical signal to a PLC, controller, or monitoring system.

This signal allows the system to perform critical functions such as:

• Stopping machine movement

• Changing motion direction

• Triggering warning alarms

• Starting the next production process

• Providing safety interlock protection

• Monitoring equipment status

Because of its reliability and simple operating principle, the DS3AB-501-02T remains a preferred solution in industrial automation environments.

Main Features of DS3AB-501-02T Detection Switch

High Detection Accuracy

The DS3AB-501-02T provides precise position sensing, helping machines perform repetitive tasks with greater consistency and accuracy.

Fast Response Performance

The switch quickly reacts to mechanical movement, ensuring immediate communication between equipment and control systems.

Long Service Life

Designed for continuous industrial operation, the switch can withstand millions of operating cycles while maintaining stable performance.

Compact Installation Design

Its compact dimensions make it suitable for equipment where installation space is limited.

Reliable Contact System

Stable electrical contacts help minimize signal loss and reduce the possibility of false triggering.

Excellent Environmental Resistance

The switch performs reliably in environments with vibration, dust, humidity, and temperature fluctuations.

Source: Industrial Automation Components Technical Reference Guide.

Working Principle of DS3AB-501-02T Detection Switch

The operating mechanism is simple, reliable, and highly effective.

When a moving machine component reaches a specified location, it activates the switch actuator. This action causes the internal electrical contacts to change state and generate a signal.

The signal is then transmitted to the controller, which can perform various programmed actions:

• Stop machine movement

• Reverse motor direction

• Activate warning indicators

• Initiate subsequent production steps

• Protect equipment from over-travel

• Record operational data

This direct interaction between mechanical motion and electronic control improves system reliability and production efficiency.

Technical Advantages for Modern Manufacturing

After years of working with automation equipment, I have learned that reliable sensing devices significantly improve productivity and equipment safety. The DS3AB-501-02T offers several technical advantages that support modern industrial operations.

Source: Industrial Control Engineering Application Handbook.

Industrial Applications of DS3AB-501-02T

The DS3AB-501-02T Detection Switch is suitable for a wide variety of industrial environments and automation systems.

• Industrial Automation Equipment

• Assembly Production Lines

• Industrial Robotics

• Packaging Machinery

• Conveyor Systems

• Material Handling Equipment

• CNC Machine Tools

• Automated Warehousing Systems

• Logistics Equipment

• Home Appliance Manufacturing

Manufacturing Process and Quality Assurance

At Wenzhou Zhaoye Electronics Co., Ltd., quality control is integrated throughout every production stage.

• Incoming raw material inspection

• Precision component manufacturing

• Automated assembly operations

• Electrical performance testing

• Mechanical endurance verification

• Final product inspection

Each DS3AB-501-02T Detection Switch undergoes comprehensive testing before shipment to ensure consistent quality and dependable performance.

Production Lead Time, Packaging, and Logistics

Production lead times generally range from 7 to 20 days depending on order volume and customization requirements.

To ensure product safety during transportation, we utilize:

• Anti-static packaging materials

• Protective foam cushioning

• High-strength export cartons

• Customized packaging solutions upon request

Shipping options include express delivery, air freight, sea freight, and international logistics services, providing flexible transportation solutions for global customers.

Why Choose Wenzhou Zhaoye Electronics?

• Established electronic switch manufacturer since 2007

• Professional R&D and engineering teams

• Advanced production and testing equipment

• Strict quality management system

• OEM and ODM customization support

• Competitive factory-direct pricing

• Reliable international delivery capability

• Responsive technical support services

• Stable production capacity

• Long-term partnerships with global customers

Frequently Asked Questions

What is the main purpose of the DS3AB-501-02T Detection Switch?

It is designed for position detection, movement monitoring, and travel limit protection in industrial automation systems.

Can it be used in robotic automation systems?

Yes. The DS3AB-501-02T is commonly used in robotic motion control, positioning feedback, and safety protection applications.

What is the typical production lead time?

Production generally requires 7–20 days depending on quantity and customization requirements.

What shipping methods are available?

Express courier, air freight, sea freight, and international logistics solutions are available.

What payment methods do you support?

We accept bank transfer, credit card payments, Alipay, and international payment platforms.

Conclusion

The DS3AB-501-02T Detection Switch / Limit Switch delivers accurate position detection, fast response performance, long operational life, and dependable industrial durability. It is an excellent choice for manufacturers seeking reliable sensing and limit control solutions for automation equipment, robotics, packaging machinery, conveyor systems, CNC equipment, and material handling applications.

Supported by the manufacturing expertise of Wenzhou Zhaoye Electronics Co., Ltd., the DS3AB-501-02T provides the quality, reliability, and performance required by modern industrial automation systems worldwide.
