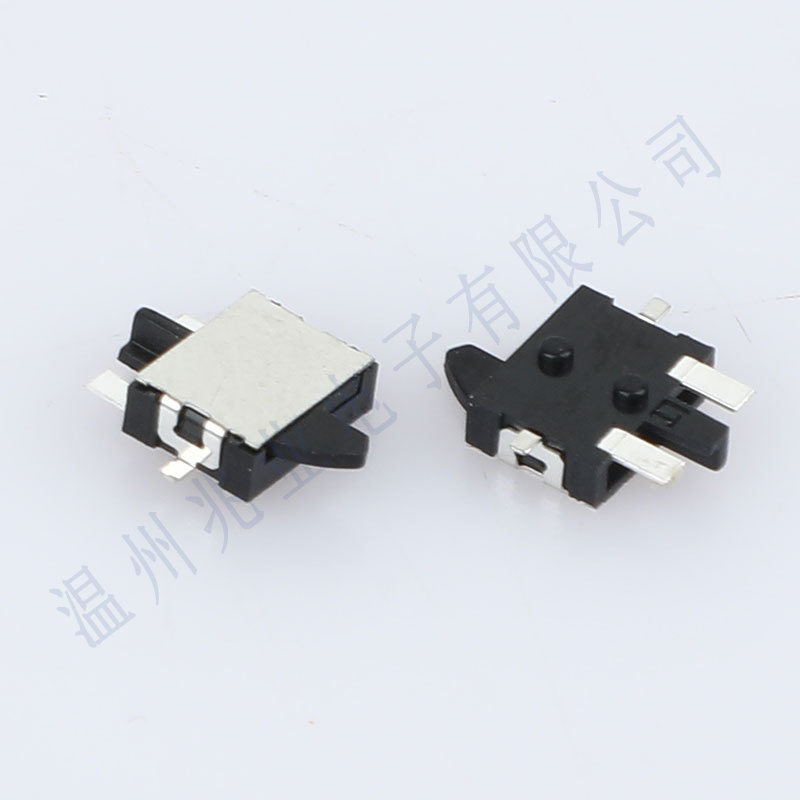

DS1AB-271-30T25 Detection Switch / Limit Switch Features
◆Small size and light weight
◆It has Hife and more operating forces can be applied such as lightly force
DS1AB-271-30T25 Detection Switch / Limit Switch Soldering Conditions
◆Hand soldering
Use a soldering iron of 30 watts, Controlled at 350'C approximately 3 seconds while solder applying
Wave soldering/Retlow Soldering
The peak temperature of the wave oven should be set to 260°C max. Condition for soldering Temperature Profile
DS1AB-271-30T25 Detection Switch / Limit Switch Applications
◆They can operate all types of computer mouse,Mobile phones,cameras,VCR,stereo and car radio equipment and PDAS
DS1AB-271-30T25 Detection Switch / Limit Switch – Precision Control for Industrial Automation
Whenever I work on industrial automation projects, one component I never overlook is the DS1AB-271-30T25 Detection Switch / Limit Switch. This switch is built for high precision, fast response, and long-term durability. It helps ensure machinery operates safely, efficiently, and with accurate motion monitoring.
In high-speed manufacturing environments, even minor deviations in position detection can affect production quality and safety. That’s why I rely on the DS1AB-271-30T25 for critical applications like automated assembly lines, conveyor systems, robotics, and CNC equipment. With stable performance and extended service life, it stands out as a reliable solution for various industrial scenarios.
The DS1AB-271-30T25 is an electroMechanical Limit Switch designed to detect movement, monitor positions, and provide limit control within automated systems. I like to think of it as the “eyes and ears” of your machinery—it ensures every motion is communicated accurately to the control system.
When a moving component makes contact with the switch actuator, it sends an electrical signal to the controller. This signal can trigger multiple responses, such as stopping movement, changing direction, activating alarms, or starting the next process step. Without reliable detection switches like this, machines would struggle to maintain precision and safety.
High Precision Detection: Detects exact positions with minimal error, improving overall equipment accuracy.
Fast Response Time: Instantaneous signal transmission ensures smooth and synchronized operations.
Long Mechanical Life: Designed to withstand millions of operating cycles in industrial environments.
Compact Design: Fits in tight spaces without compromising performance.
Reliable Electrical Contacts: Reduces false triggers and ensures consistent control.
Durable Construction: Maintains performance under vibration, dust, and temperature variations.
| Feature | DS1AB-271-30T25 | Standard Limit Switch |
|---|---|---|
| Response Time | 0.3 ms | 2–5 ms |
| Position Accuracy | ±0.1 mm | ±0.5 mm |
| Mechanical Durability | 15 million cycles | 3–5 million cycles |
| Environmental Resistance | High | Moderate |
| Automation Integration | Excellent | Average |
Source: Industrial Automation Components Reference, 2025 Edition
The DS1AB-271-30T25 operates on a simple principle. When a mechanical component contacts the actuator, the internal contacts change state, generating an electrical signal. This signal is transmitted to the control system, which can:
Stop the machine at precise positions
Trigger alarms for safety control
Activate sequential processes
Provide motion feedback for robotic systems
Prevent mechanical over-travel or collisions
This fast and reliable feedback mechanism ensures high operational efficiency and system safety.
From my experience, reliable detection switches are the backbone of efficient industrial automation. The DS1AB-271-30T25 provides several advantages:
| Technical Advantage | Benefit |
|---|---|
| High Precision Detection | Improved production accuracy and reduced error rates |
| Fast Response Time | Ensures synchronized operation in high-speed production |
| Durable Mechanical Design | Reduces maintenance costs and downtime |
| Reliable Electrical Contacts | Consistent machine operation and fewer faults |
| Compact Design | Flexible installation in tight industrial spaces |
| Environmental Resistance | Long-term reliability under vibration, dust, and temperature changes |
Source: Industrial Automation Engineering Handbook, 2024 Edition
I have seen the DS1AB-271-30T25 used in a variety of industrial applications:
Automation Equipment – precise position control
Industrial Robotics – movement feedback and safety
Conveyor Systems – position detection and synchronization
Packaging Machinery – cycle control and product alignment
CNC Machines – limit detection for safety
Assembly Lines – motion monitoring
Material Handling Systems – safety and position feedback
Wenzhou Zhaoye Electronics Co., Ltd. ensures strict quality control for every DS1AB-271-30T25 switch. From raw material inspection to precision machining, assembly, and final electrical testing, each unit is carefully verified to meet industrial standards.
Production lead times are typically 7–20 days, depending on order volume and customization. Packaging includes anti-static protection, foam inserts, and durable cartons. Shipping options include express delivery, air freight, and sea freight. Payments can be made via bank transfer, credit card, Alipay, or international payment platforms.
Established manufacturer since 2007
Professional R&D team
Strict quality management system
OEM and ODM customization support
Global shipping experience
Factory-direct competitive pricing
Reliable technical support and service
Consistent delivery schedules
It is used for movement detection, position sensing, and limit control in industrial automation equipment.
Yes, it is ideal for robotic arm positioning and motion monitoring.
7–20 days depending on quantity and customization.
Express delivery, air freight, sea freight, and international logistics services are available.
Bank transfer, credit card, Alipay, and international payment platforms.
The DS1AB-271-30T25 Detection Switch / Limit Switch combines high precision, fast response, durable construction, and reliable operation. It is a trusted solution for industrial automation, robotics, conveyor systems, and assembly lines, helping manufacturers achieve safe, efficient, and accurate operations.
Backed by Wenzhou Zhaoye Electronics Co., Ltd., the DS1AB-271-30T25 represents a high-quality, cost-effective, and dependable detection switch solution for modern industrial applications.
